- Low/mid driver dimensions: 15 "
- Woofer magnet: Ferrite
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1 "
- HF driver magnet: Ferrite
- HF driver voice coil: 1.4 "
- Amplifier: Class D
- Dispersion (H x V): 90° x 50°
- System Power (RMS): 300 W
- Peak power: 1200 W
- Frequency response: 48 - 20000 Hz
- Crossover frequency kHz: 2 kHz
- Max. SPL (peak): 128 dB
- Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
- Controls: 2 x gain, On / off switch, Rotary/push encoder
- Mic/ line inputs: 2
- Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
- Line inputs: 1
- Line input connectors: 3.5 mm TRS
- Line outputs: 1
- Line output connectors: XLR
- Cabinet material: Polypropylene
- Cabinet construction: Bass Reflex
- Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
- Monitor angle: 55 °
- Width: 416 mm
- Height: 695 mm
- Depth: 415 mm
- Weight: 24,3 kg
- Accessories (included): Power cord
LD Systems ICOA 15A
Absolut vår favorit i detta prisläge! Aktiv högtalare med gott om kraft, kan användas både som fronthögtalare och golvmonitor. Förvånansvärt rent och kontrollerat ljud med bra tryck. Smidig att hantera med fyra olika handtag, och kan även enkelt installeras via sina 6xM10 fästpunkter.
Artnr: LDICOA15A
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
5190 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme
- A genuine all-rounder for full-range, satellite and monitor applications
- 128 dB max. SPL and 1200 W peak power

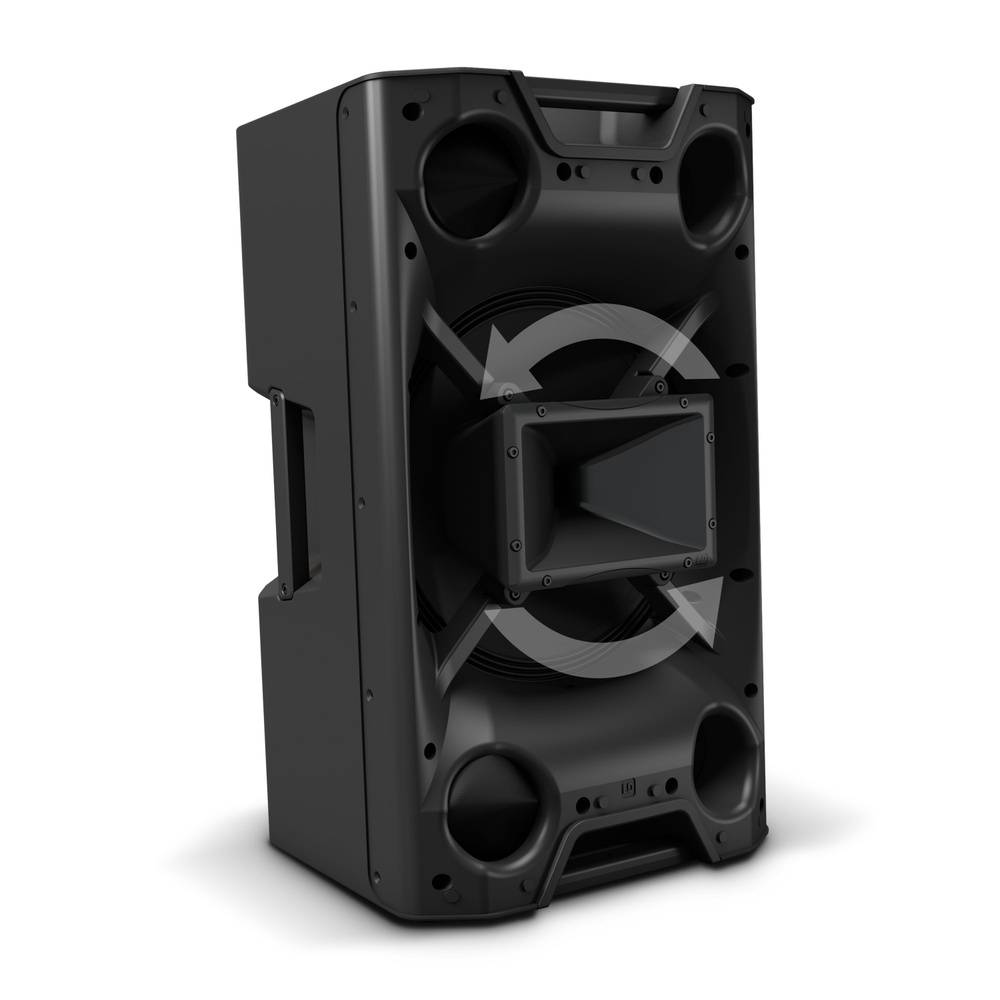

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

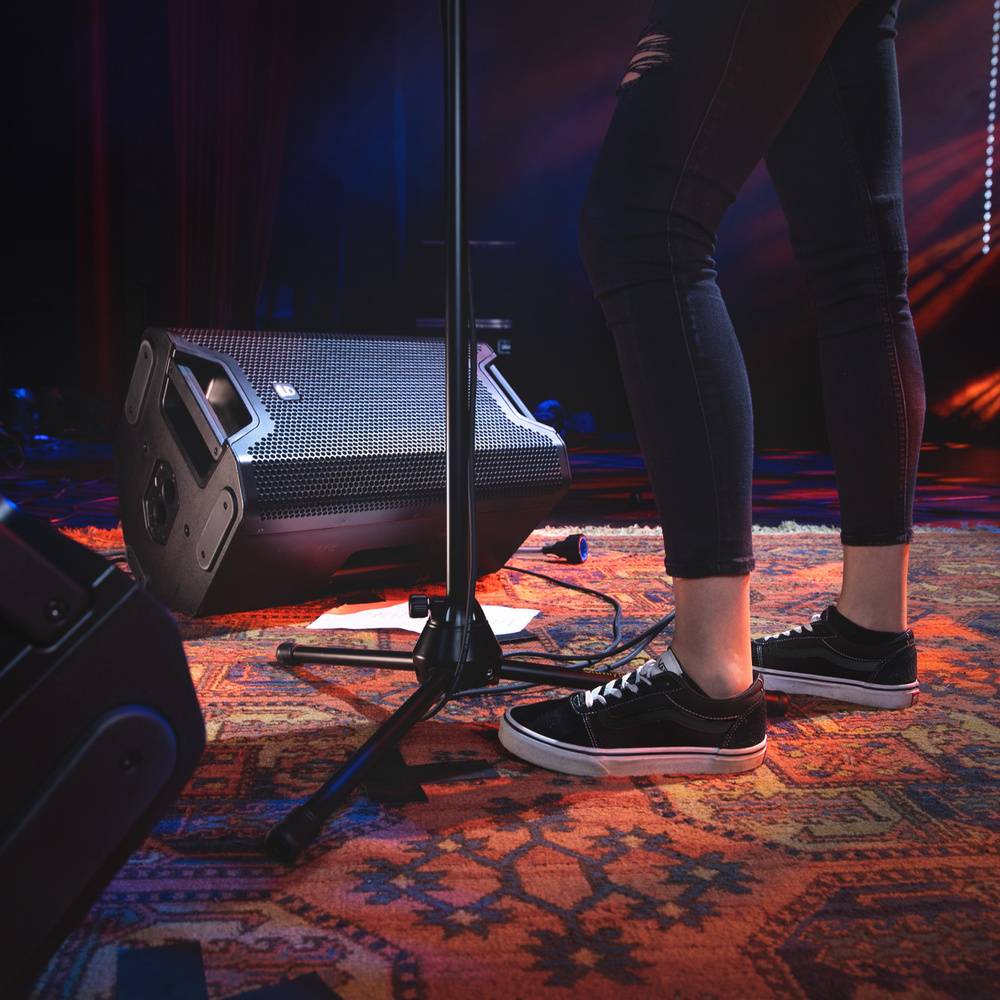

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
| Typ av högtalare: | Aktiva högtalare |
