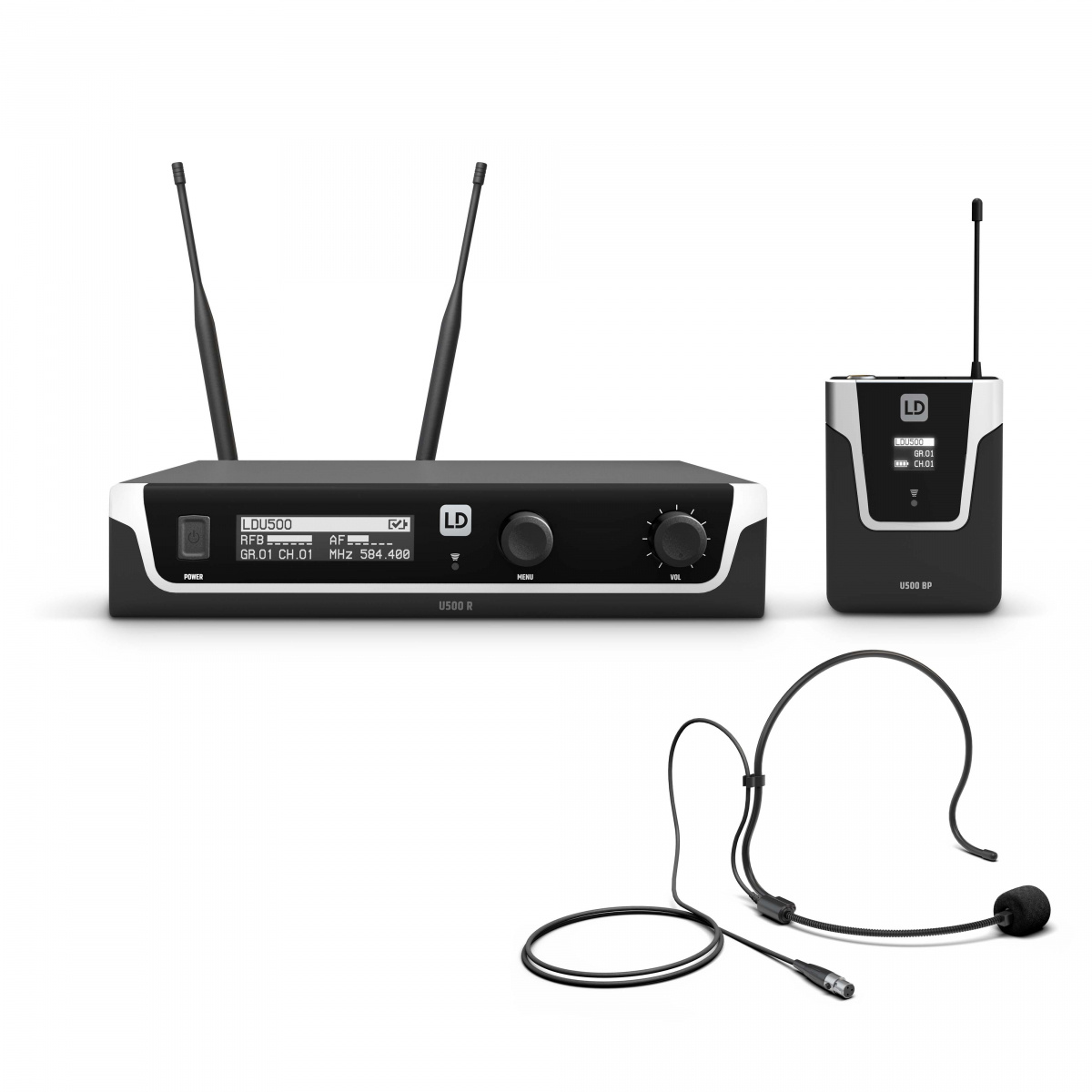

Name: LD Systems U508 BPH Headset
Brand: LD Systems
SKU: LDU508BPH
Price: 4490 SEK
Availability: InStock

Beskrivning
Mer information
Ge ditt omdöme

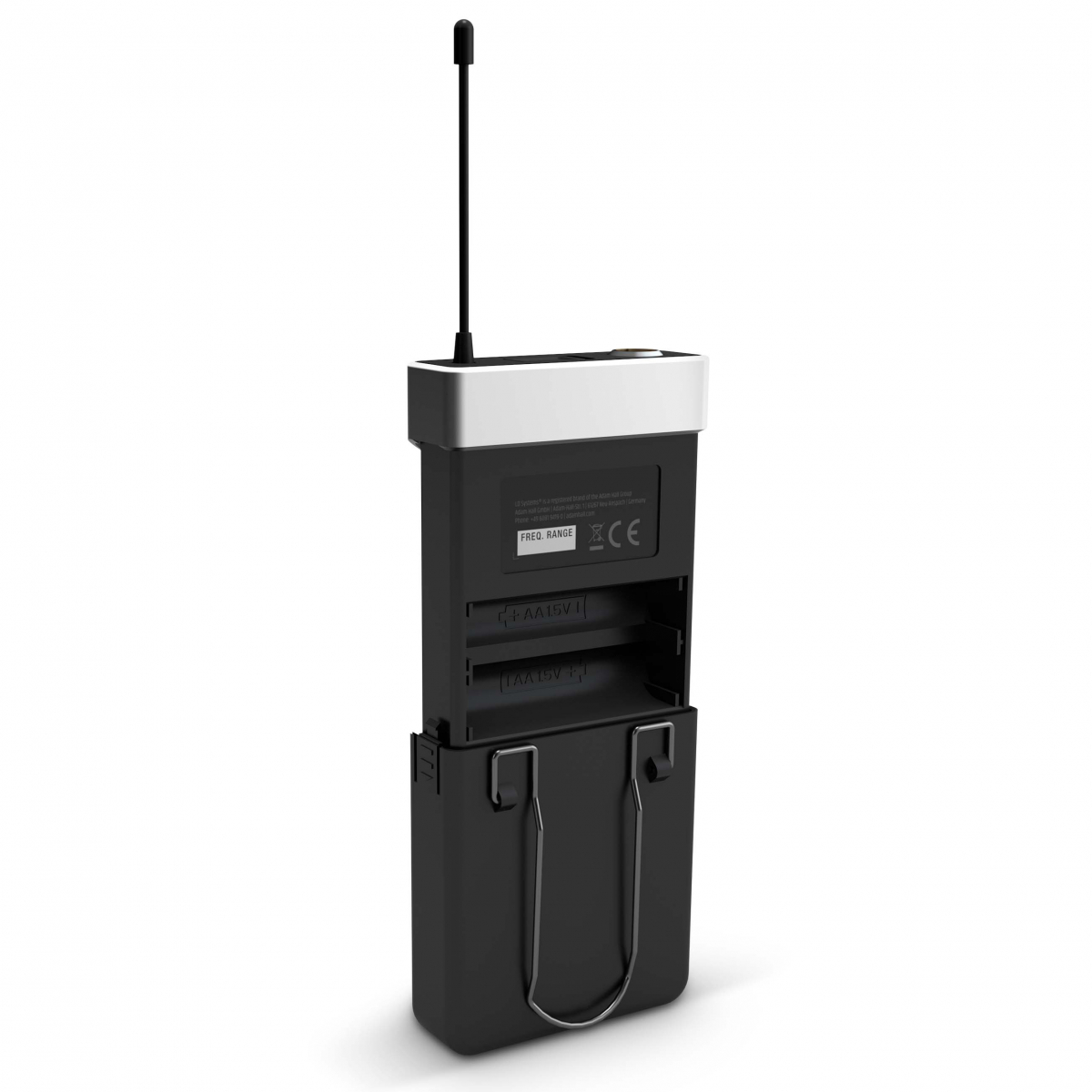

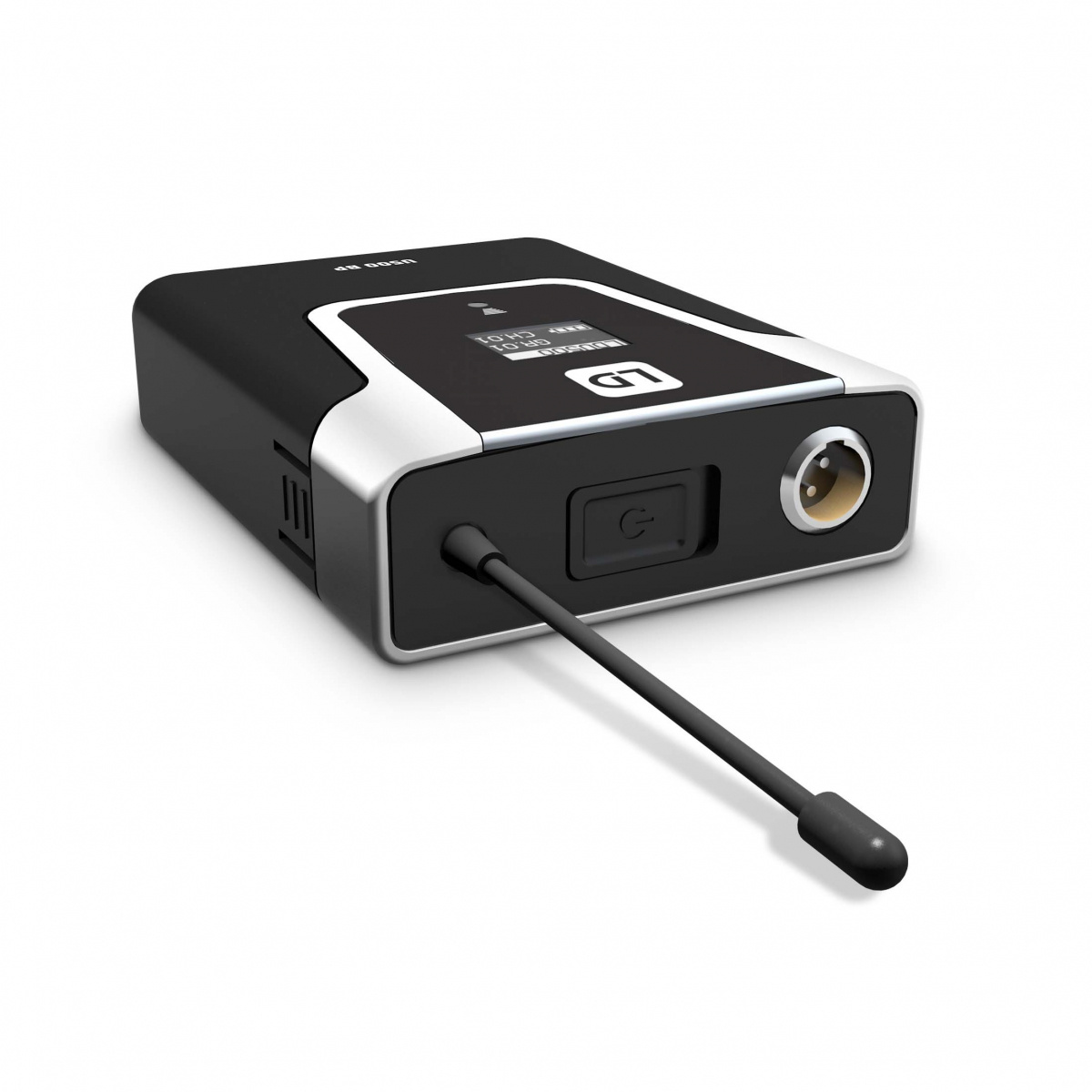

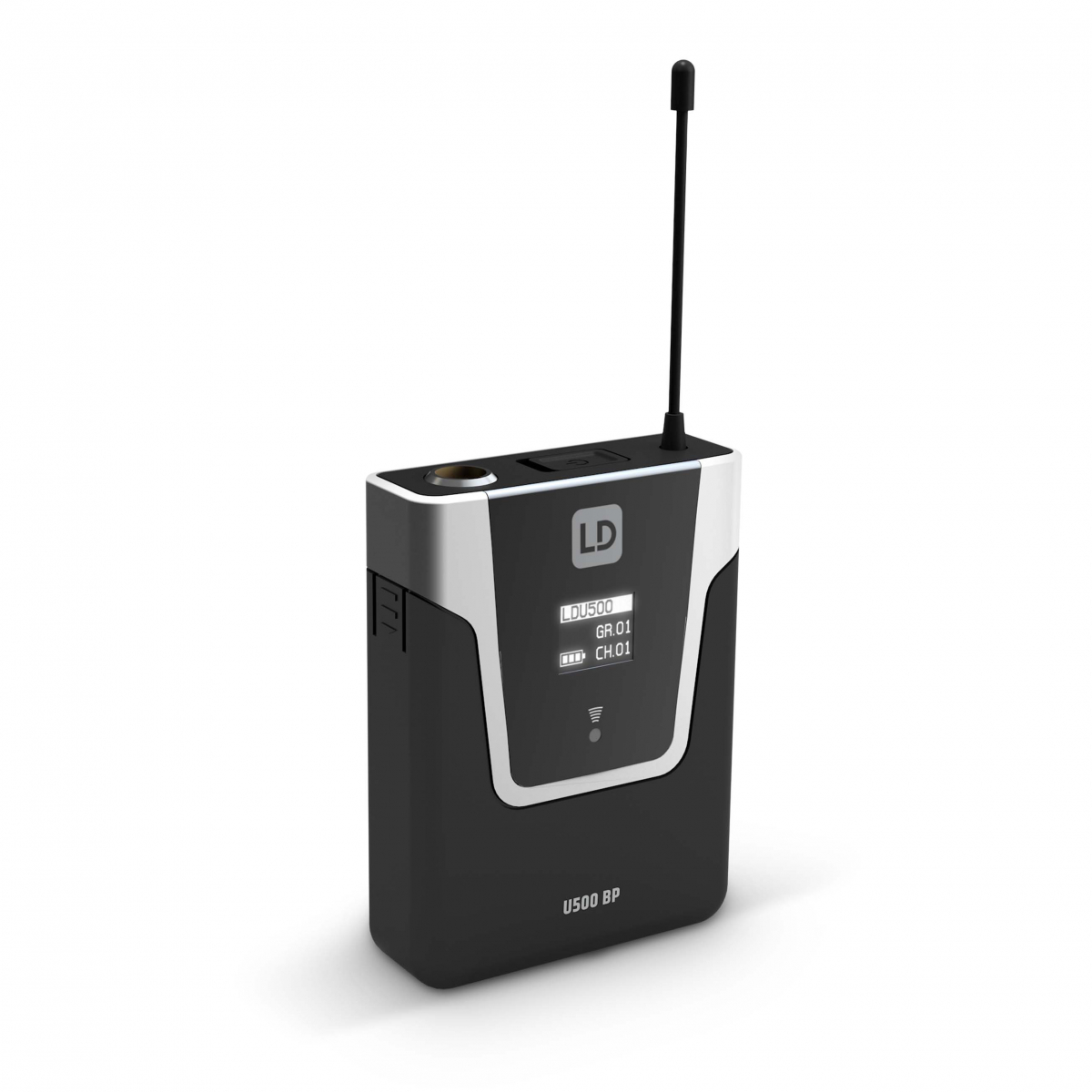

Specification LD Systems U508 BP Bodypack transmitter:
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Inputs: Mini-XLR (3-pin)
Frequency response: 30 - 16000 Hz
Rated HF output power: Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio: >90 dB
Operating time: >10 h (with alkaline batteries)
Operating voltage: 2 x AA battery
Size: 65x86x23mm
Weight: 0,09 kg
Other features: detachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power

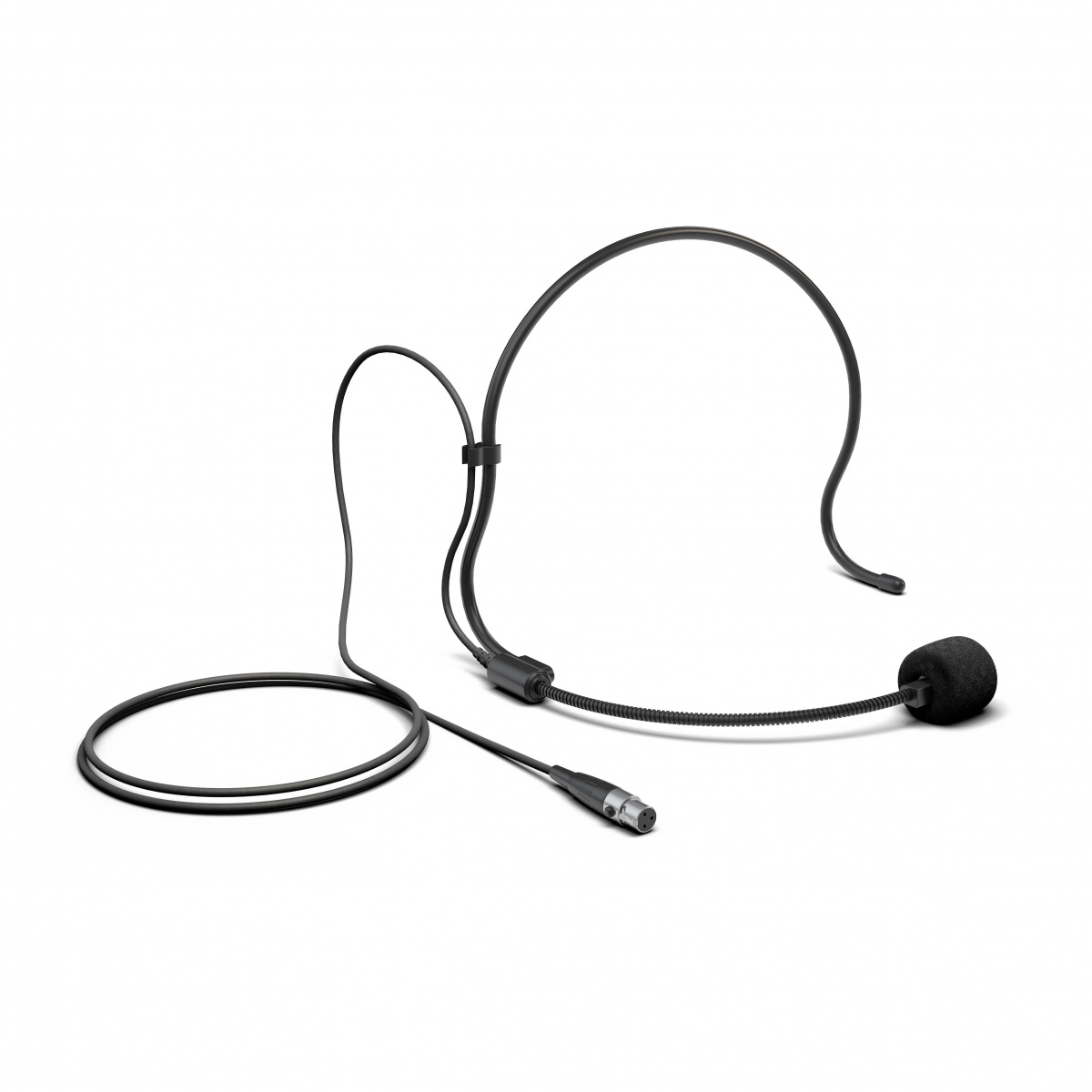

Specification LD Systems WS 100 MH 1 Headset:
Directivity: Cardioid
Frequency response: 20 - 20.000 Hz
Nominal impedance: 680 Ohm(s)
Phantom power requierements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Weight: 0,049 kg
Accessories (included): Foam windscreen

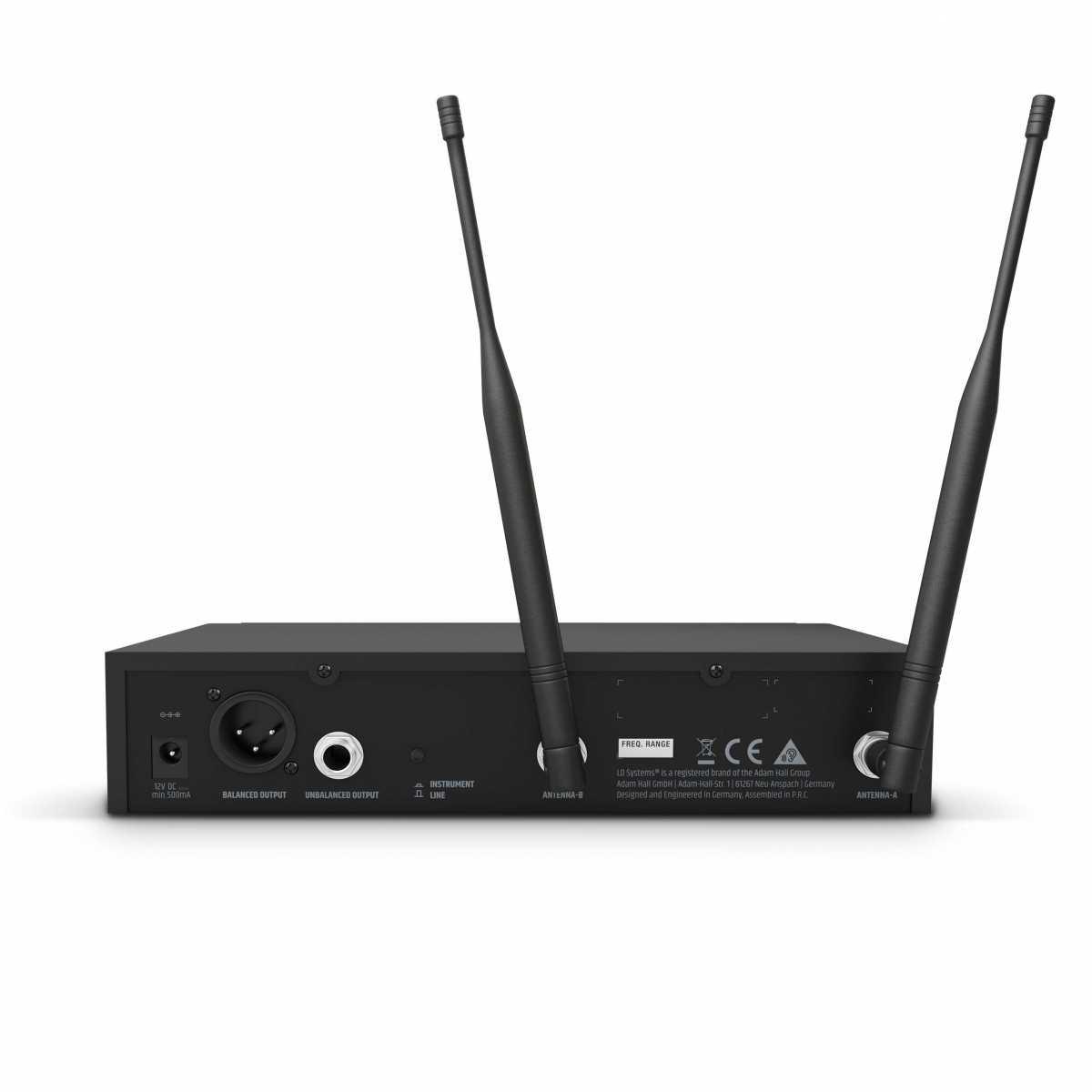

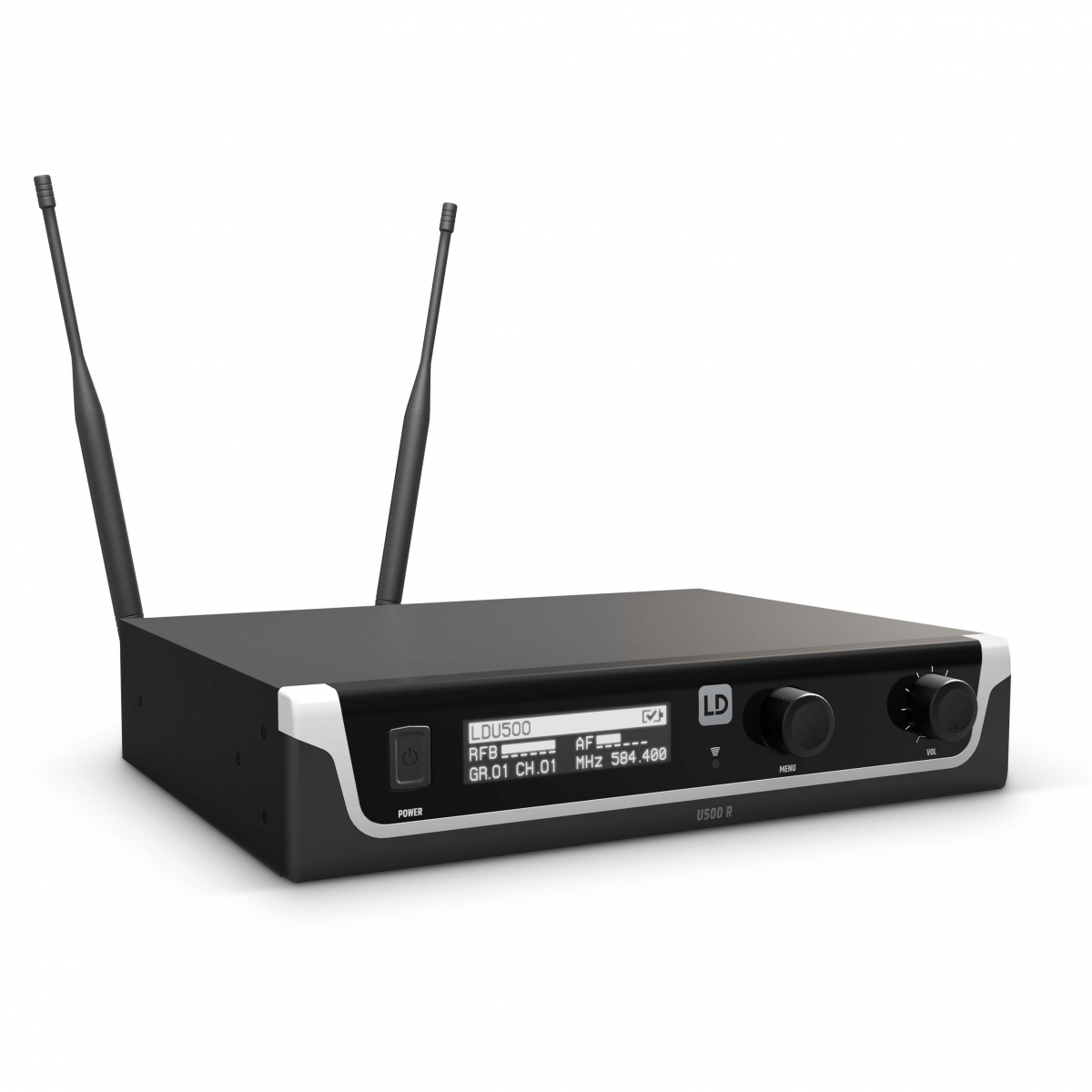

Specification LD Systems U508 R Receiver:
Modulation Type: FM
Noise reduction: Squelch
Total Harmonic Distortion (THD): < 0.3 %
Signal-to-noise ratio: > 100 dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack
Max. output level: +10 dBu
Controls: digital encoder, volume
Operating voltage: 12 V DC, 500 mA
Size: 212x44x159mm
Weight: 0,85 kg
Accessories (included): 2 x antenna, Audio cable, power adapter
Other features: channel search function, Pilot tone

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

Typ av system:

Headset / Mygga
