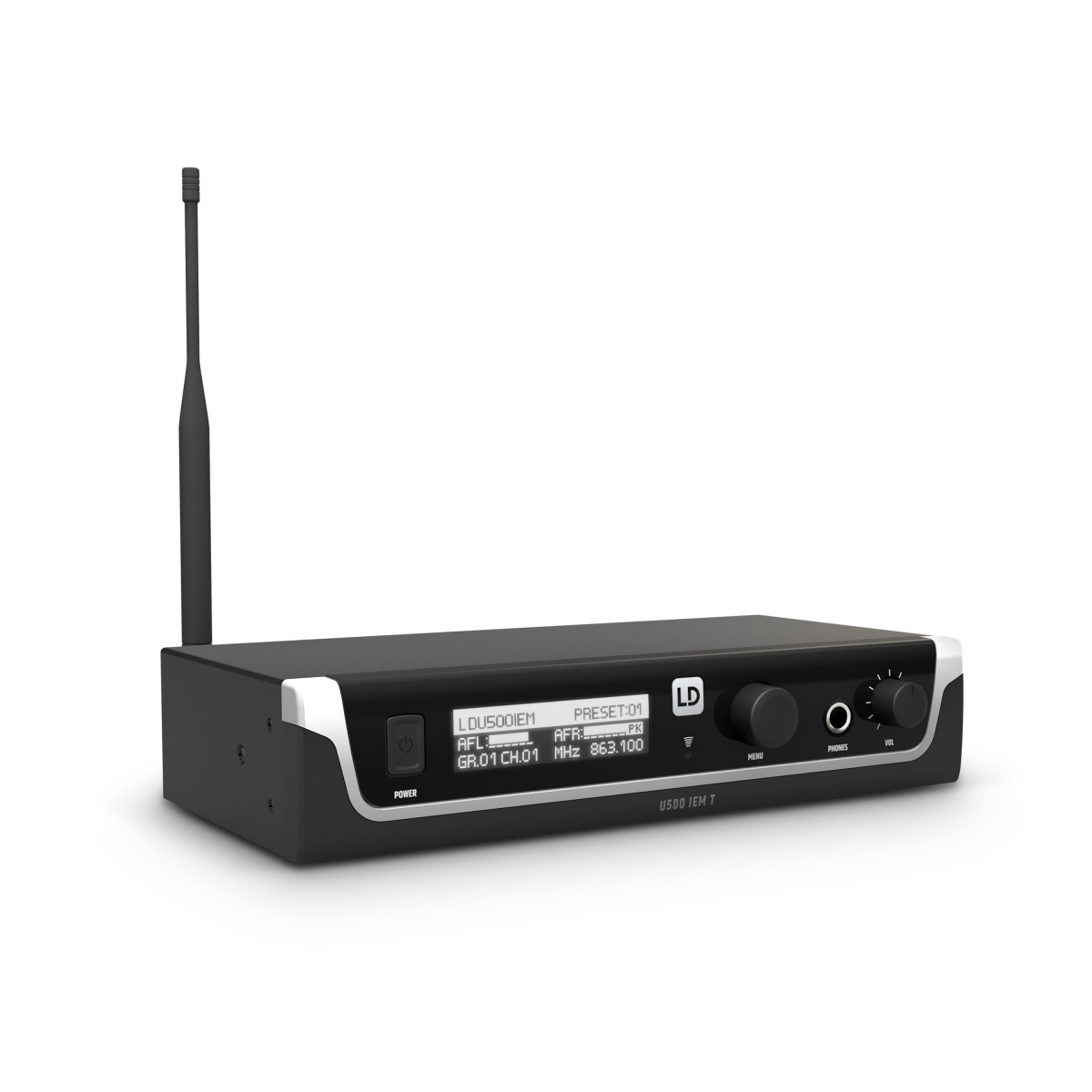

- Specifications U508 Transmitter:
- Transmission frequency range: 863 - 865
- Modes of operation: focus/mono/stereo
- Rated HF output power: 10 mW , 2 mW , 30 mW
- Total Harmonic Distortion (THD): 0.3 %
- Dynamic range: 88
- Inputs: 2

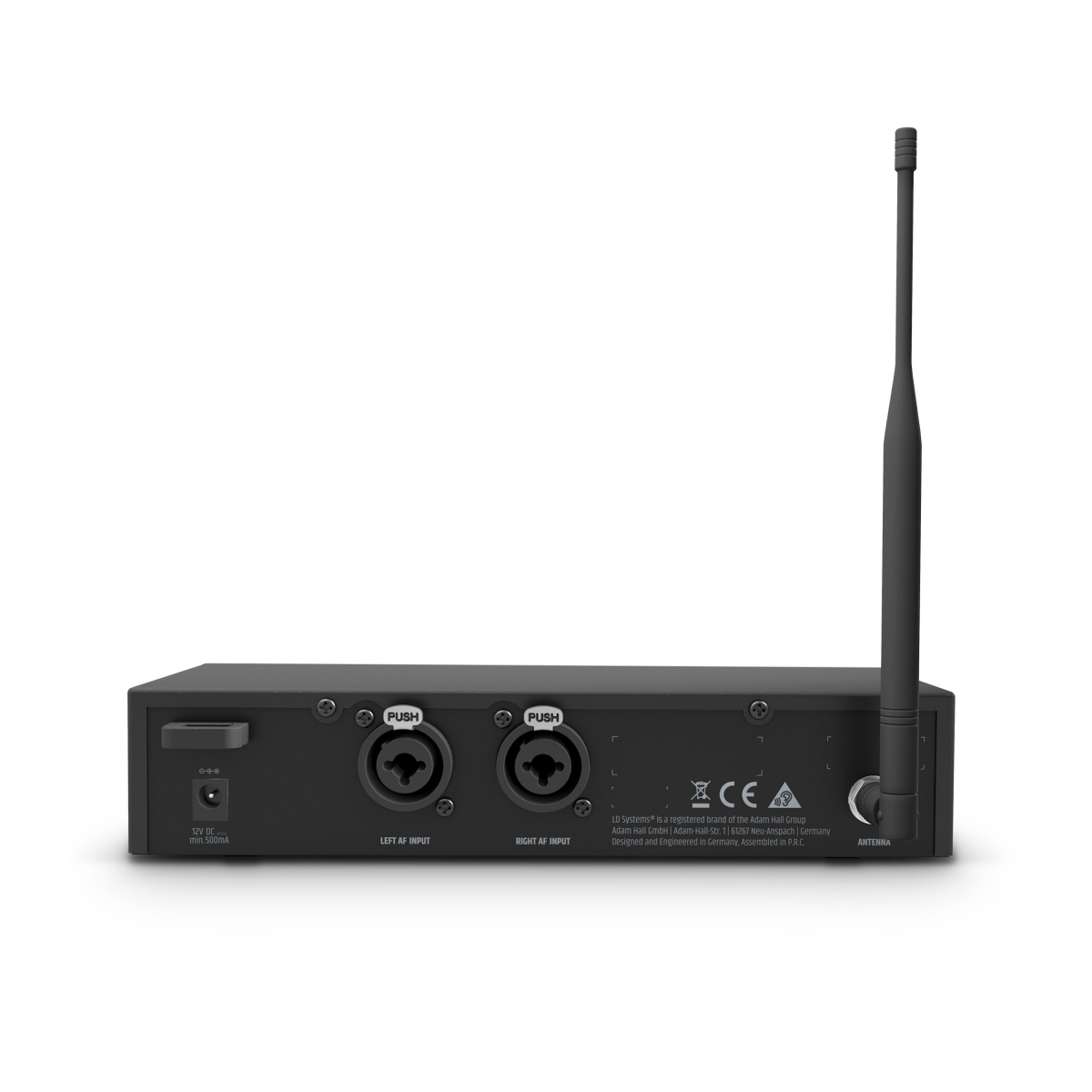

- Input connectors: Combo TRS 6.3 mm , XLR (balanced)
- Antenna connector: BNC
- Controls: Menu selector Button , Power On/Off , volume headphones
- Width: 212
- Height: 43
- Depth: 123
- Weight: 0,641
- Accessories (included): 19" Rack mount kit , BNC-Antenna , power adapter
- Specifications U508 Reciever:
- Transmission frequency range: 823 - 832
- Channels: 96 (8 groups of 12 channels)
- Transmission method: FM, mono/stereo
- Frequency response: 40 - 16000
- Audio output: 3.5 mm TRS
- Max. audio output level: 33 mW @ 16 Ohm , 80 mW @ 33 Ohm
- Operating time: < 10 hours
- Controls: Down , On / Off , Up , volume
- Operating voltage: 2 x 1.5 V AA
- Width: 64
- Height: 100
- Depth: 24
- Weight: 0,095
- Accessories (included): 2 x AA batteries , Antenna

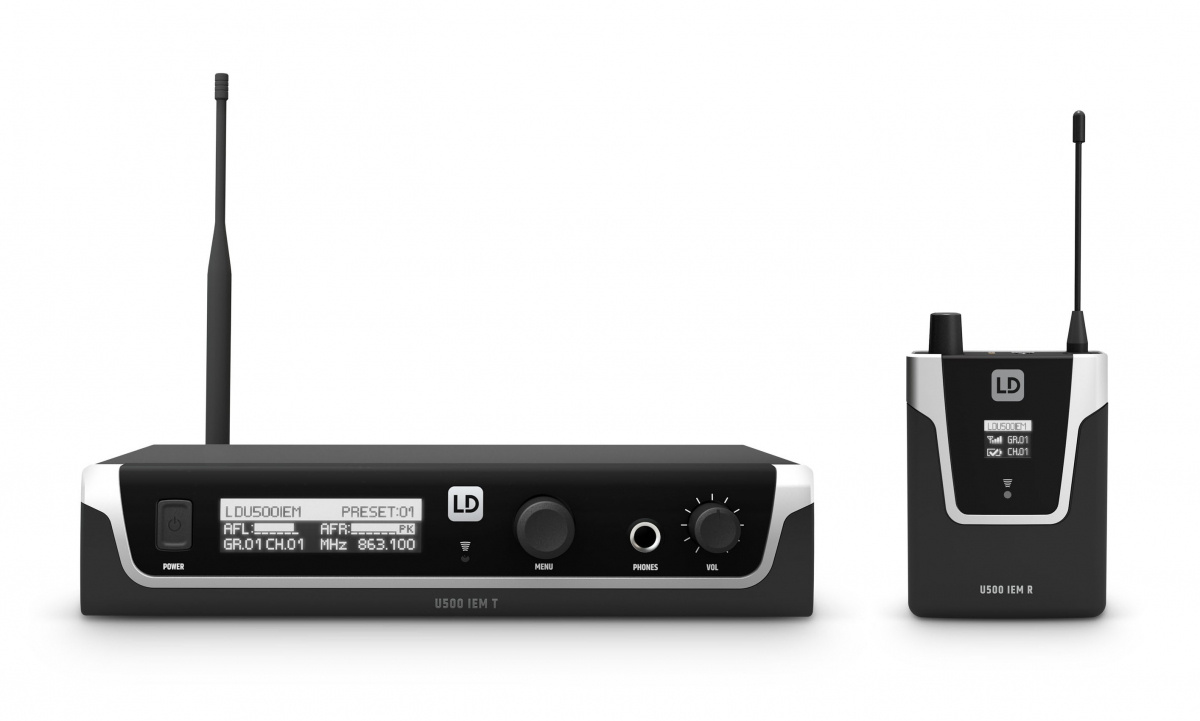

LD Systems U508 IEM In-Ear System
In-Ear system med bra och stabil trådlös överföring. Hög ljudkvalité, där man dessutom har en 3-bands EQ och en limiter inbyggd. Valbart mellan stereo/mono. Används med standard AA-batterier och har en batteritid upp till 10 timmar.
Artnr: LDU508IEM
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
4790 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme
U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.
To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.

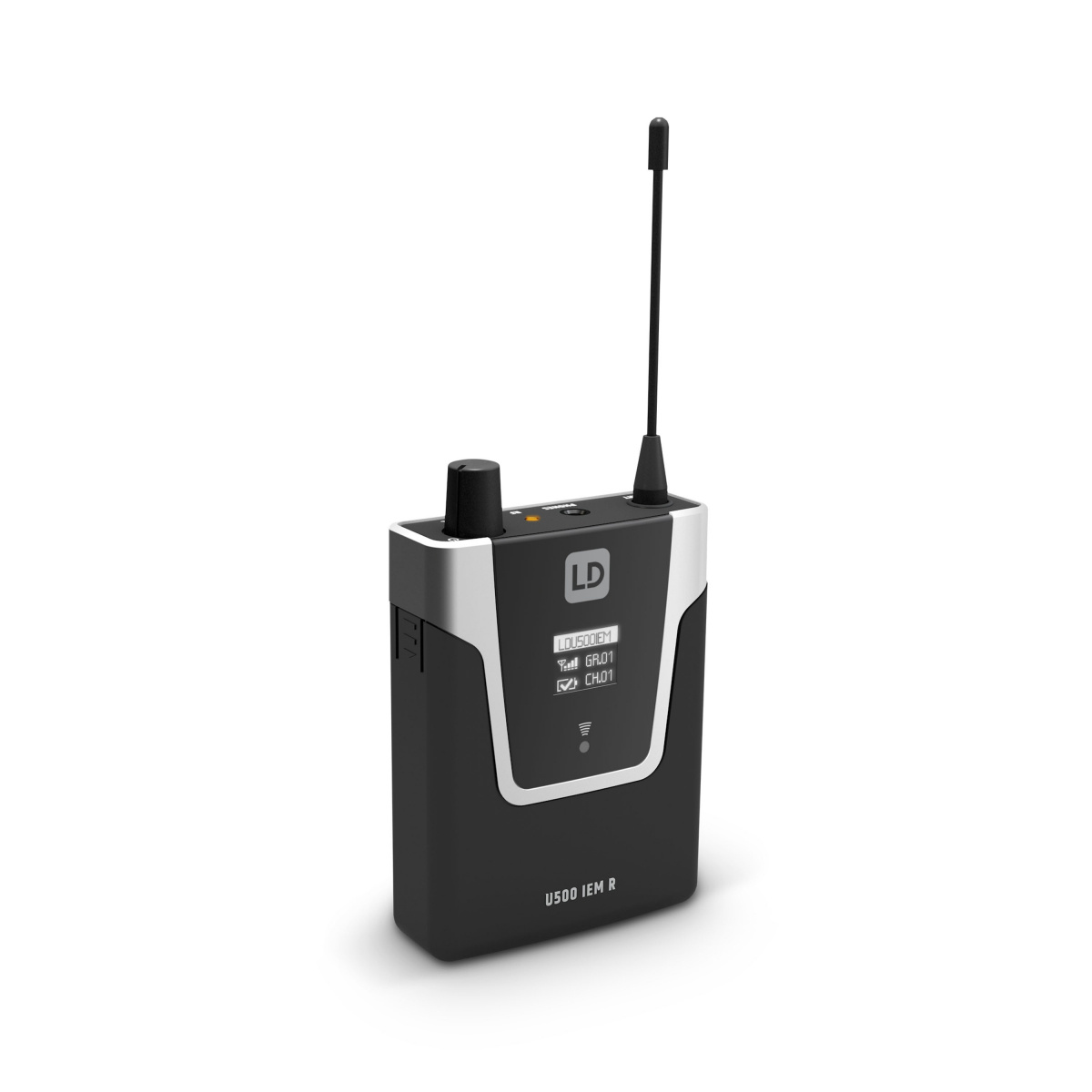

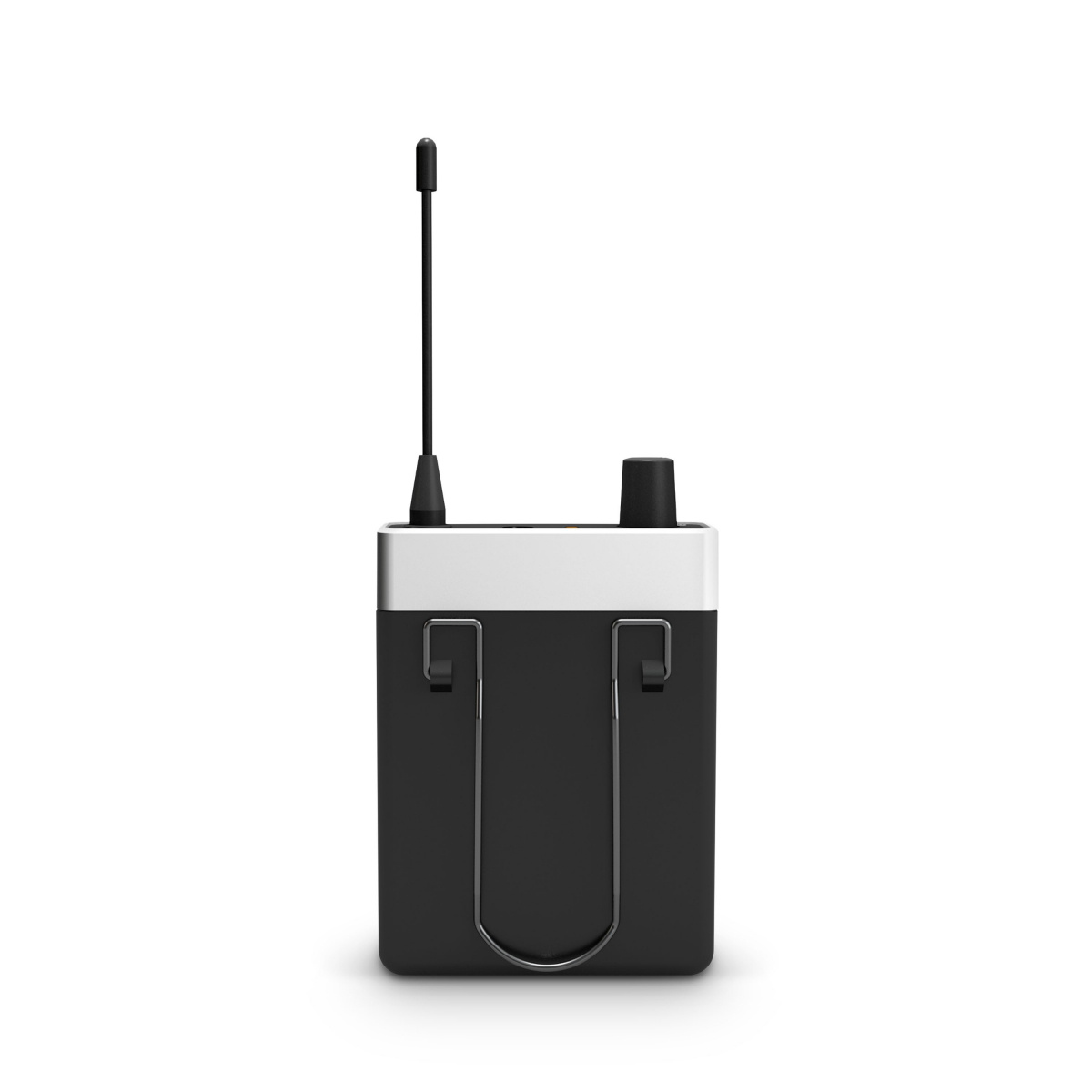

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.
