Type of speaker 3-way
Peak power 1600 W
Rated power 800 W
RMS/AES power 400 W
Impedance 4 Ω
Sensitivity (1W/1m) 94 dB
Sound pressure (Max. W/1m) 121 dB
Frequency response (± 3 dB) 62 Hz - 20 kHz
Range (-10 dB) 46 Hz - 20 kHz
Speakers:
HF Compression driver with 1.4" VC and 1" neck.
LF 1x8" coaxial with 2" voice coil + 1x8" LF coaxial with 1,8
Connectors 2 x Speakon compatible (Linkthrough)
Horizontal dispersion 95° (1 kHz - 10 Khz - average 1/3 oct)
Vertical 95° (1 kHz - 10 Khz - average 1/3 oct)
Dimensions 710 x 260 x 290 mm (W x H x D)
Weight 17 kg
Construction High-quality 15 mm plywood
Finish Cabinet finish Polyurethane coating
Front finish Powder-coated steel grille with acoustic foam
Mounting and handling Fixing points M6 & M10

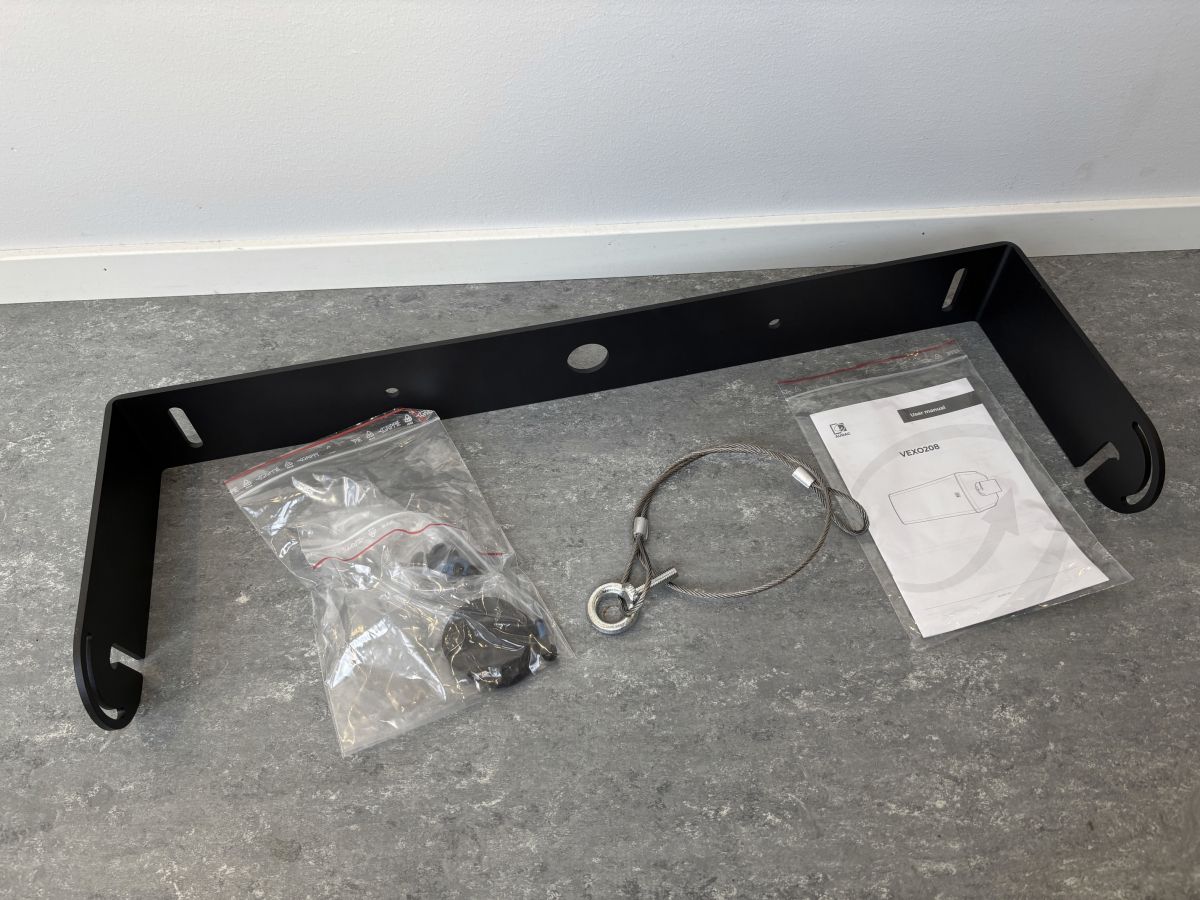

Accessories included Mounting bracket
