- Woofer dimensions: 6.5 "
- Tweeter dimensions: 1 "
- Dispersion (H x V): 80 x 70 °
- Frequency response: 80 - 20.000 Hz
- Amplifier: Class D
- Amplifier output (RMS): 2x70 W
- Amplifier output (peak): 2x280 W
- Max. SPL: 122 dB
- Protection circuits: ICL (Intelligent Clip Limiting) , over-current , overload , short circuit , thermal overload
- Mixer Channels: 4
- Mic inputs: 3
- Mic inputs: 6.3 mm jack , XLR
- Controls for Mic Inputs: DFX Send , EQ Hi , EQ Low , Hi-Z Switch (channel 1 only) , level
- Line inputs: 1
- Line input connectors: 2 x RCA
- Controls Line Inputs: DFX Send , EQ Hi , EQ Low , level
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Monitor Line Outputs: 1
- Connector Type Monitor Line Output: 2 x RCA
- DSP Number of Programs: 16
- Main section controls: EQ Hi , EQ Low , EQ Mid , Master Volume , Phantom Power , voltage selector switch
- Phantom power: 15 V
- Power consumption: 180 W
- Cabinet construction: vented
- Cabinet material: MDF
- Size: 214x323x221 mm
- Weight: 7 kg
- Other features: 2 x 16 mm pole mount socket , rubber feet

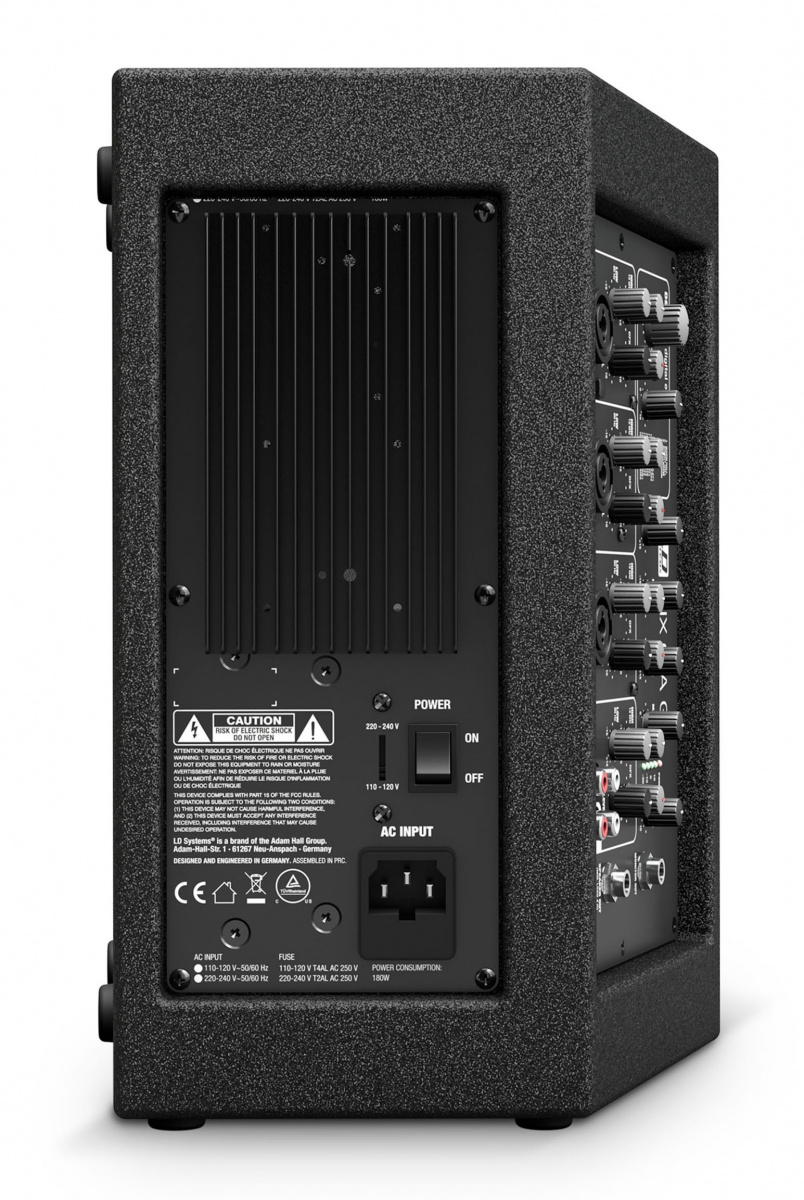

LD Systems MIX 6A G3
Mycket kompakt och smidig aktiv högtalare med ett mixerbord med fyra kanaler och inbyggda DSP effekter. Komplettera med den passiva högtalaren i MIX serien så har du ett stereosystem som är kraftfullt och ändå kompakt. Byggd i stabilt MDF chassi. Även populärt som monitorsystem.
Artnr: LDMIX6AG2
Visa fler
Visa färre
Visa fler
Visa färre
Webblager:
Finns i lager
Finns varan i butik?
Luleå
Skellefteå
Umeå
3190 kr
Öppet köp i 14 dagar Fri frakt över 1000 kr Komplett serviceverkstad
- Beskrivning
- Mer information
Ge ditt omdöme
Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.
The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
| Typ av högtalare: | Aktiva högtalare , Kompletta system |
