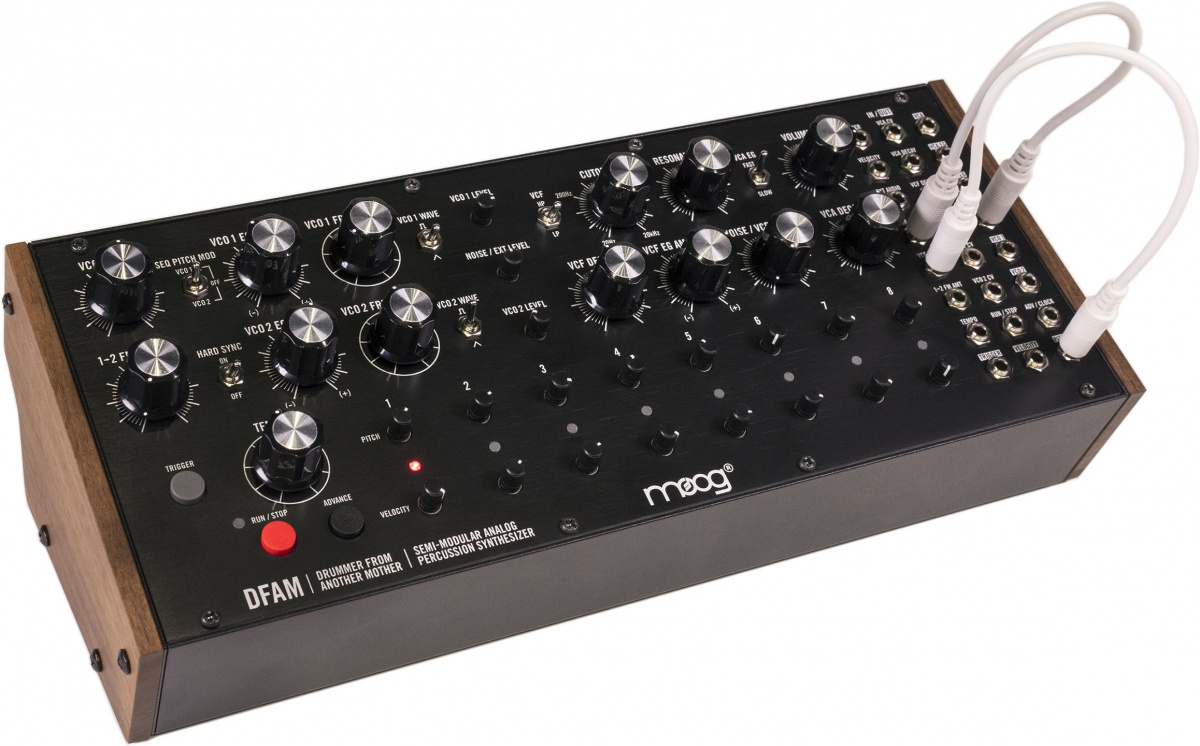

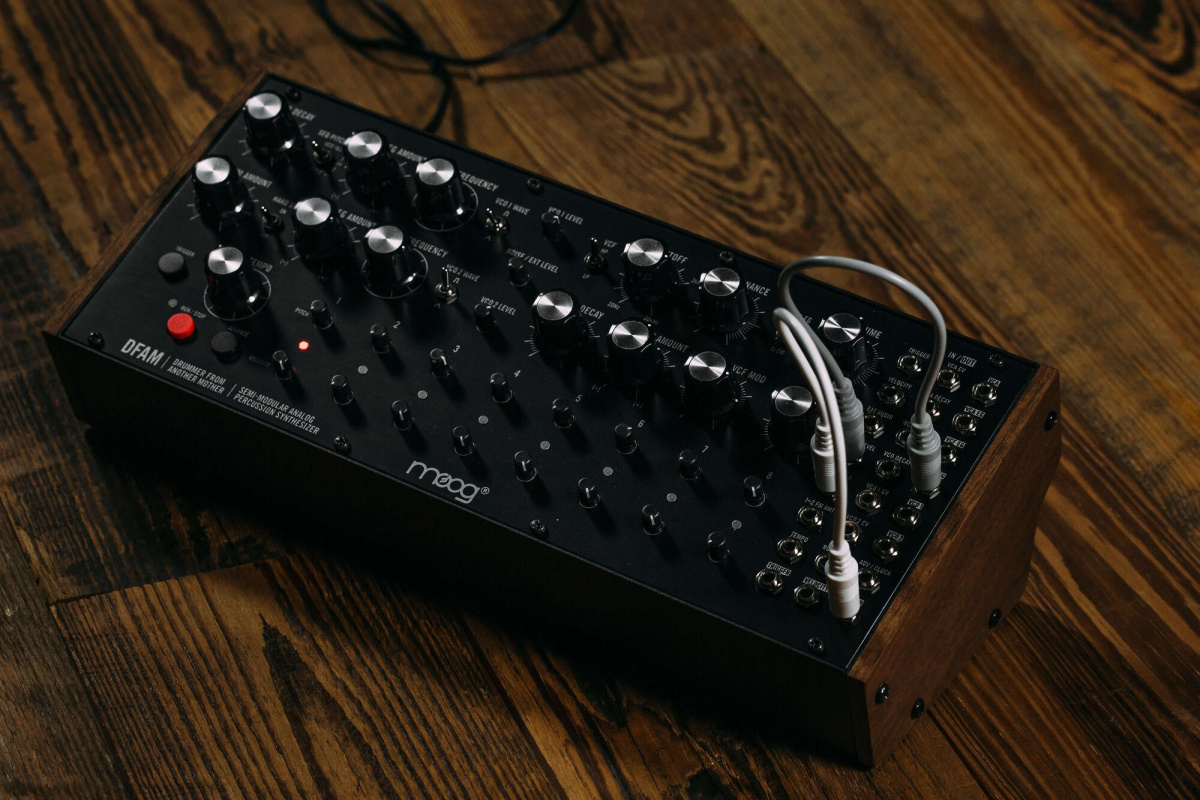

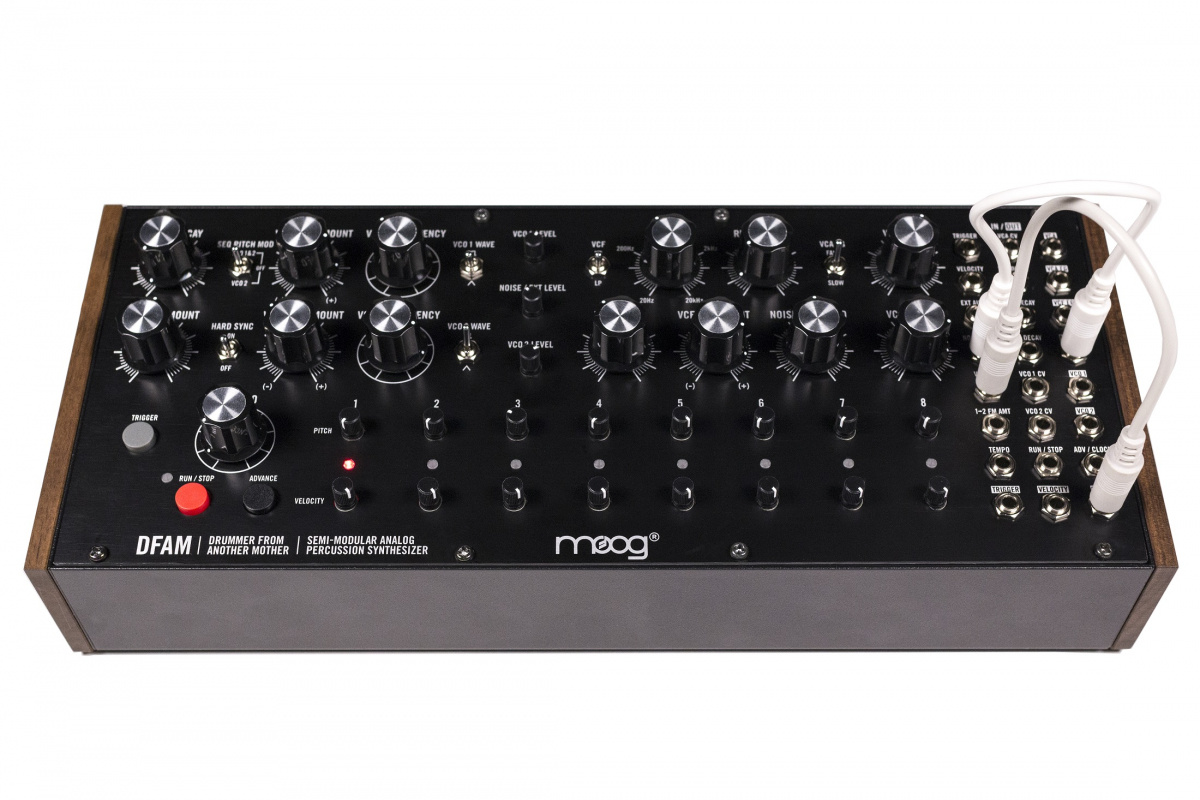

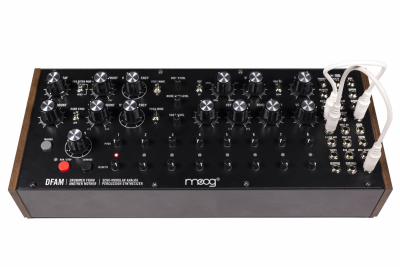

Name: Moog DFAM Drummer From Another Mother
Brand: Moog
SKU: 3-MODFAM
Price: 7890 SEK
Availability: InStock

SOUND ENGINE: Analog
ANALOG SEQUENCER: 8-Steps With Pitch and Velocity Per-Step
SEQUENCER PANEL CONTROLS: Tempo, Run/Stop, Trigger, Advance
SOUND SOURCES: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Input
FREQUENCY CONTROL: +/
5 Octaves (10 Octave Range)
MIXER: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input
FILTER: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter
ENVELOPES: VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/ Voltage Controlled Decay and Selectable Fast/Slow Attack Time
PATCHBAY: 24x 3.5mm Jacks
PATCHBAY INPUTS: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 12 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock.
PATCHBAY OUTPUTS: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.
AUDIO OUTPUT: ¼” TS Line / ¼” TRS Headphones (Shared Output Jack)
INCLUDED POWER SUPPLY: 100-240VAC 50-60Hz, +12VDC 1200mA
POWER CONSUMPTION: 3.0W
EURORACK CURRENT DRAW: 230mA (+12V – from 10-pin header)
EURORACK MOUNTING DIMENSIONS: 60HP (1”/26mm Module Depth)
Vikt: 1.6 kg
Bredd 32 cm
Höjd 11 cm
Djup 13 cm
