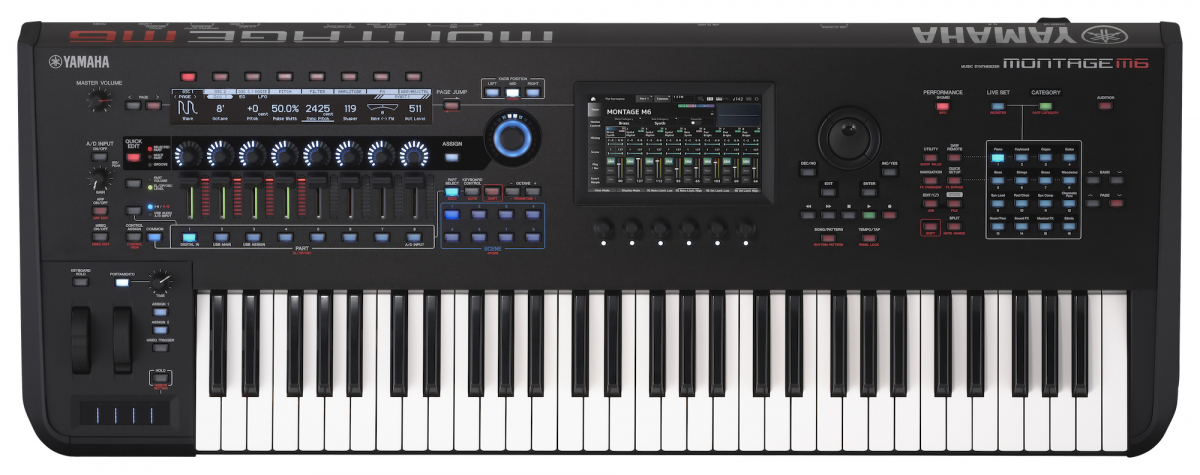

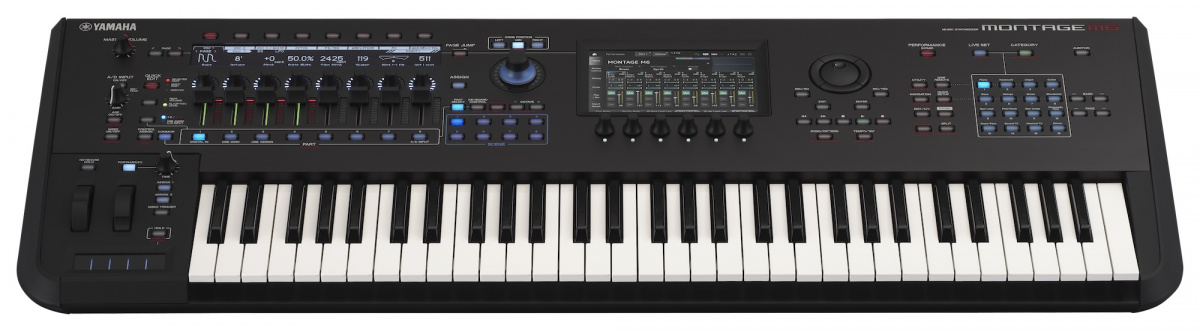

Yamaha MONTAGE M6 Music Synthesizer

AWM2

• 2 x 128 voices of polyphony
• (128 voices each for Preset and User Waveforms)
• 128 Elements per Part
• 10 GB Preset Waveforms (when converted in 16 bit linear)3.7 GB Flash Memory for User Waveforms

FM-X

• 128 voices of polyphony

AN-X

• 16 voices of polyphony
• 3 Oscillators, 1 Noise Generator
• 8 Operators, 88 Algorithms

3,369 Preset Performances

• 128 Preset Live Sets, 2,048 User Live Sets
• Motion Sequencer for real-time control of parameters
• 16 Part multitimbrality plus Audio Input Parts (A/D In, USB)
• 18 Filter Types
• Integrated Effects
• Reverb 12 Types, Variation 88 Types,
• Insertion A 88 Types, Insertion B 89 Types,
• Master 26 Types
• 5-Band Master-EQ, 2 Part-EQs (3- and 2-Band)

Sequencer

• 16 Tracks, 128 Patterns, 128 Songs

Arpeggiator

• Arpeggios for up to eight Parts in parallel
• 10,922 Preset Arpeggios (3,500 Rhythm Patterns)
• 256 User Arpeggios

Controllers

• Pitch Bend and Modulation Wheel Ribbon Controller
• 8 Control Sliders, 8 Assignable Knobs, Super Knob
• 8 2 Assignable Switches
• Portamento Switch and Portamento Time Knob
• 6 Display Knobs

Displays

• 7” TFT Color Wide VGA LCD Touch Screen
• Sub: 512 x 64 Pixel LCD

Dimensions

• Vikt 15.3 kg
• Bredd 1037 mm
• Djup 396 mm
• Höjd 131 mm
