Speakers 3 cm x 2
Power Supply
Power Consumption 6 W (When using PA-130 power adaptor)
Battery Life Approximately 5 hours
Auto Power Off Yes
Power Supply Adaptors PA-130 or an equivalent recommended by Yamaha
Batteries Six “AA” size batteries or Ni-MH rechargeable batteries
Included AC adaptor
- , MIDI breakout cable, Owner’s Manual, Warranty
- May be included depending on your locale
Voices
Number of types 5 Organ types
Effects Rotary Speaker, Distortion, Reverb
Size/Weight
Dimensions Width 530 mm (20 7/8)
Height 60 mm (2 3/8)
Depth 175 mm (6 7/8)
Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)
Keyboard
Number of Keys 37 keys
Type HQ mini (High-Quality mini)
Initial Touch Yes
Tone generation
Maximum Polyphony 128
Engine AWM (Organ Flutes)

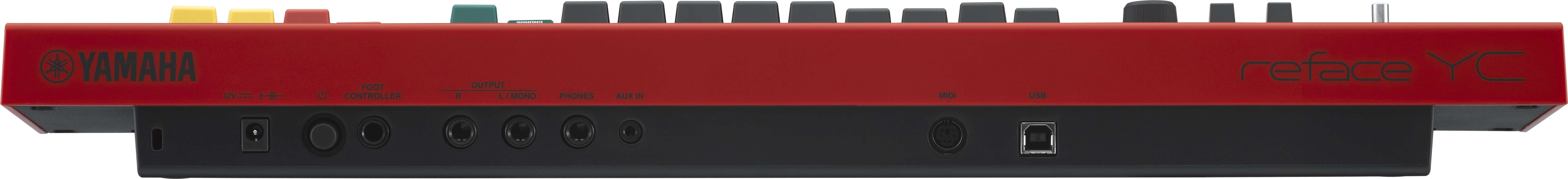

Connectivity
DC IN DC IN (12 V) jack
Headphones PHONES (6.3 mm, stereo phone jack)
MIDI MIDI (mini-DIN IN/OUT)
AUX IN AUX IN (3.5 mm, mini stereo phone jack)
OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced)
USB TO HOST USB (TO HOST)
Pedal Type FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
