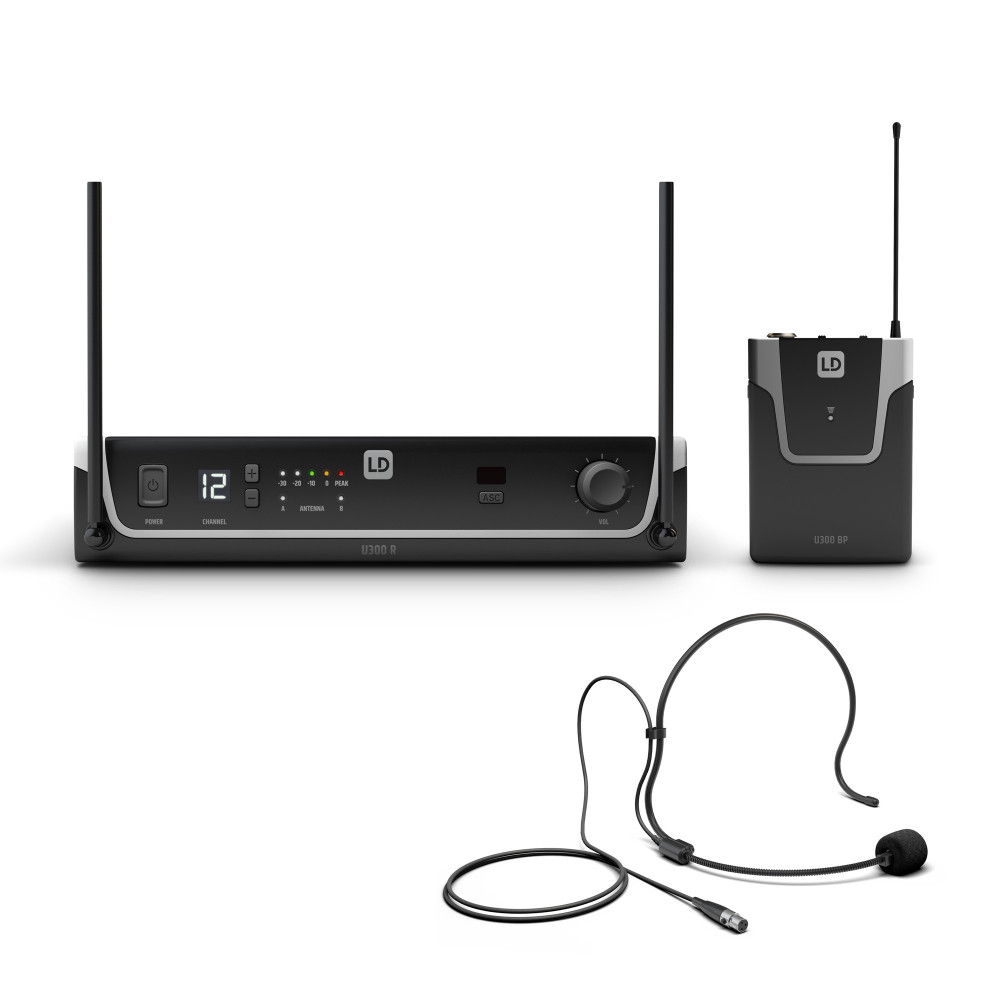

Name: LD Systems U308 BPH Headset
Brand: LD Systems
SKU: LDU308BPH
Price: 2390 SEK
Availability: InStock

Beskrivning
Mer information
Ge ditt omdöme

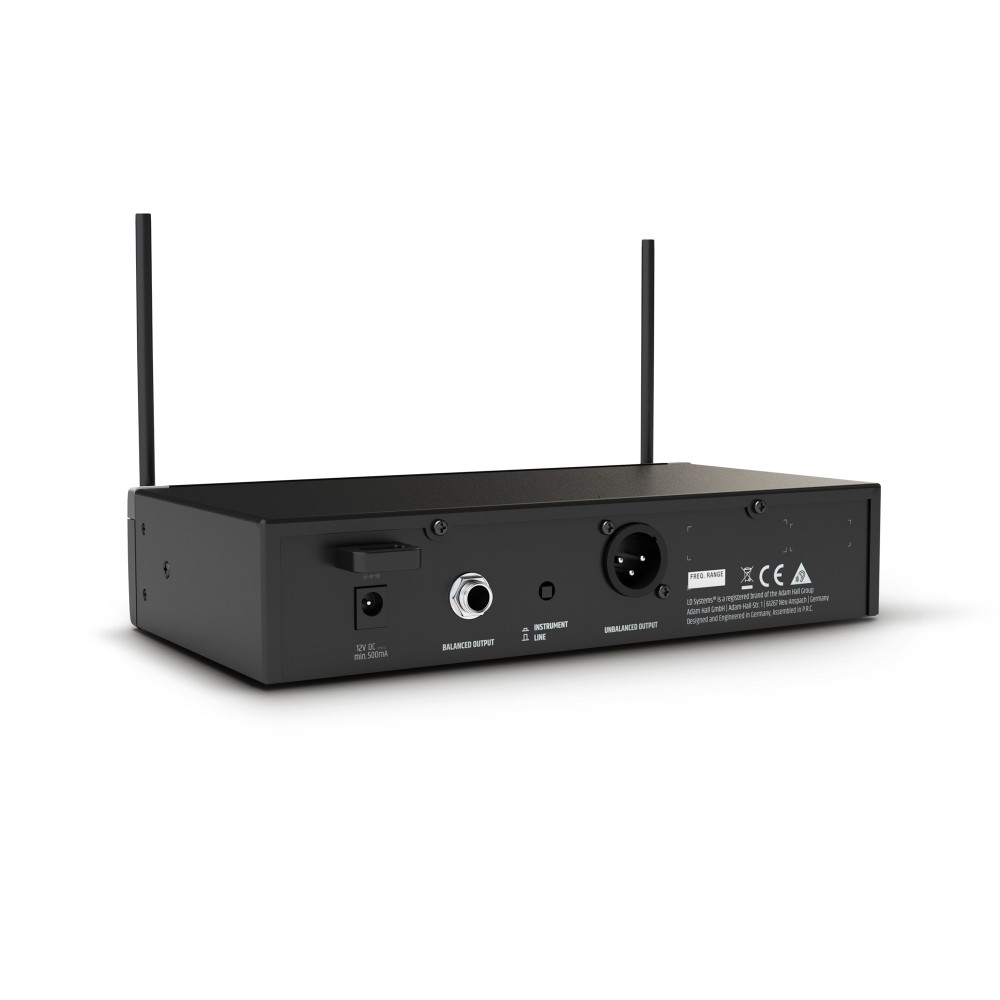

Reciever:
Transmission frequency range: 863 - 865 MHz
Channels: 12
Antenna inputs: 2 x fixed
Noise reduction: Squelch
Transmission optimization: Pilot tone
Total Harmonic Distortion (THD): < 0.3 %
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level
Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls: 5 LED VU meters, ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators: 5 LED VU meters, Antenna A/B, LC display
Operating voltage: 12 V DC - 18 V DC (500 mA), external power supply
Width: 211 mm
Height: 43 mm
Depth: 120 mm
Accessories (included): 2 x AA battery, Audio cable, Power supply
Weight: 0,7 kg

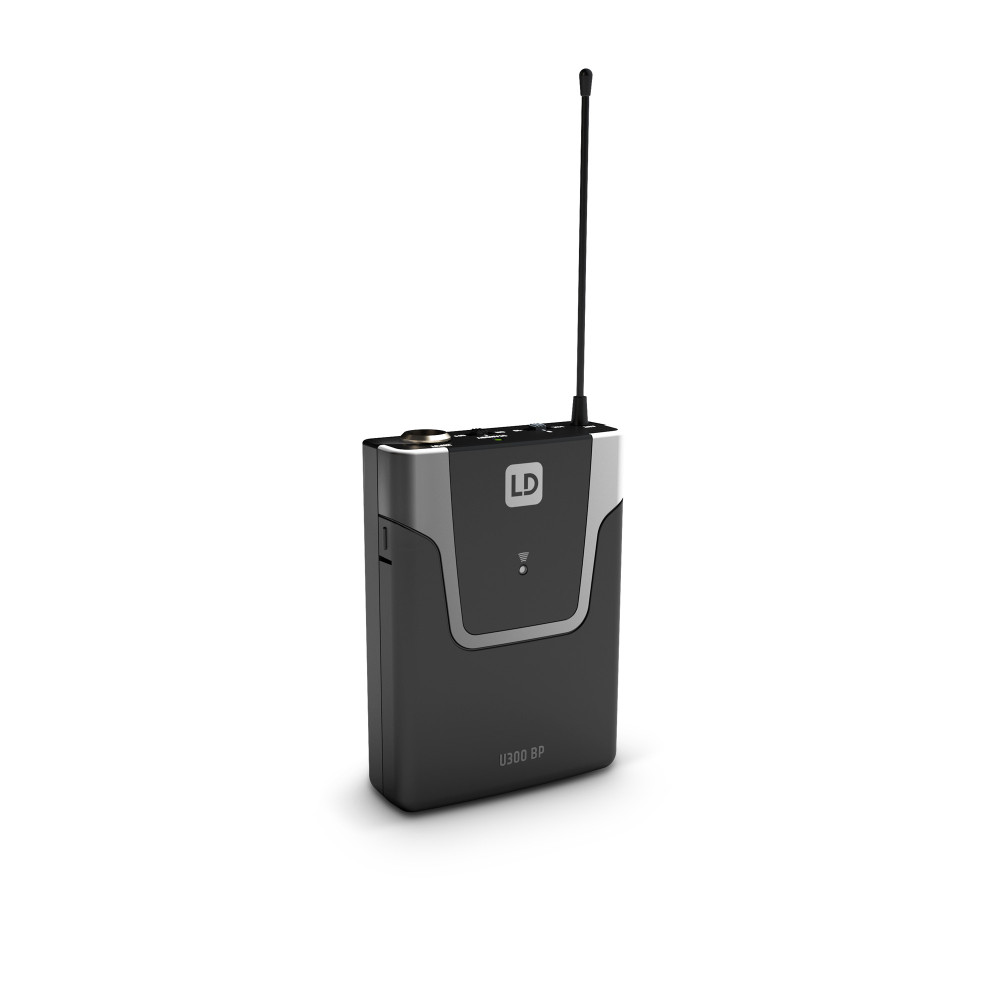

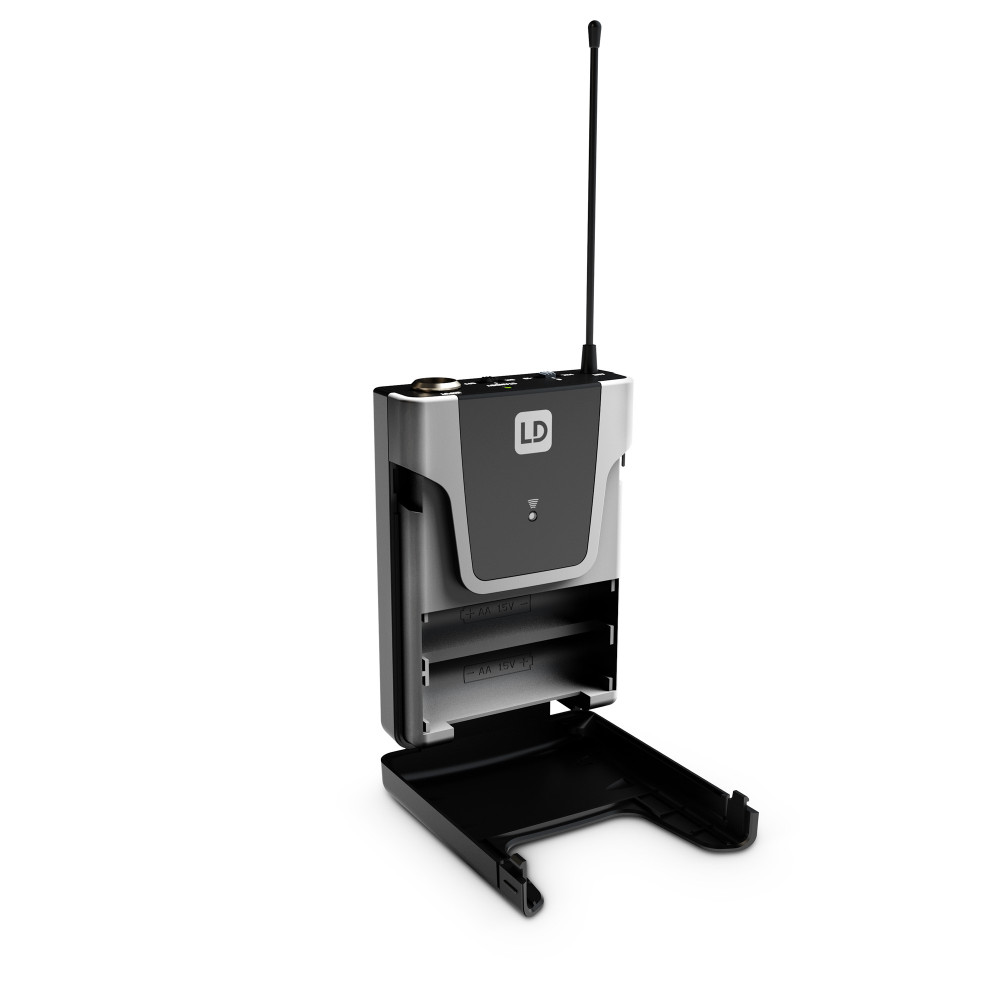

Bodypack transmitter:
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 - 16,000 Hz
Signal-to-noise ratio: 104 dB
Rated HF output power: 10 mW
Operating time: >10 h
Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Other features: Belt clip, IR frequency synchronisation, Pilot tone
Operating voltage: 2 x AA batteries
Width: 65 mm
Height: 91 mm
Depth: 25 mm
Weight: 0,085 kg

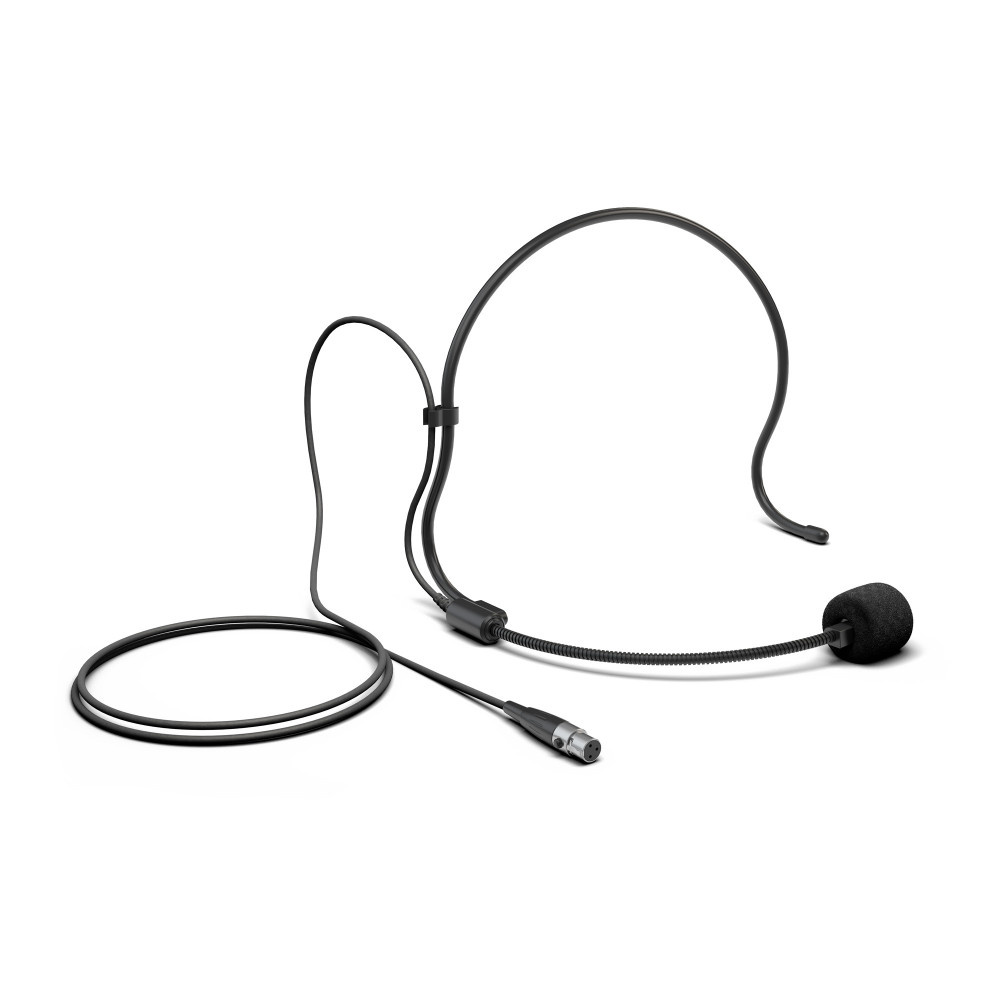

Headset:
Directivity: Cardioid
Frequency response: 20 - 20.000 Hz
Microphone input: Mini-XLR (3-pin, female)
Accessories (included): Foam windscreen
Weight: 0,049 kg

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Typ av system:

Headset / Mygga
